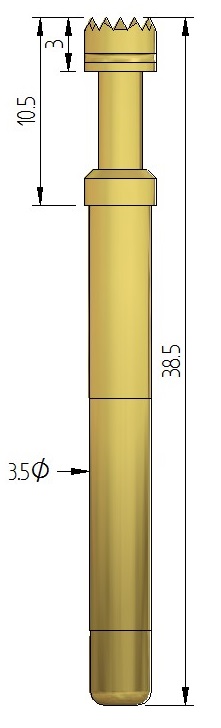

HSP50 High Current Probe Series

High current ATE push fit test probe which carries 50 amps.

This high current probe has its very own high current receptacle which is the HSR50 series.

Please refer to series P50 for standard current probes.

For a screw in (threaded) version, please see HSP50/G series.



Request for quote

Product specification

Mil
177
Centres
4.50 mm
Full Travel
5.50 mm
Working Travel
4.40 mm
Current Resistance
50.00 amps
Continuity Resistance
5.00 mOhms
Product Series
HSP50
Application
High Current
Solutions
Battery & High Current Testing

Request for quote

Please choose your Head Diameter and/or Head style to select Probes. The suitable part numbers are then shown below our head style images.

Head Style:
Part NumberHead DiameterWorking Travel Spring ForceSpring PartHead StyleQuantity
HSP50-K-3
3.00 mm
5.00 N
-3
Star - K
HSP50-K-2
3.00 mm
3.00 N
-2
Star - K
HSP50-F-4
4.00 mm
10.00 N
-4
Flat - F
HSP50-F-3
4.00 mm
5.00 N
-3
Flat - F
HSP50-F-2
4.00 mm
3.00 N
-2
Flat - F
HSP50-C4-4
3.00 mm
10.00 N
-4
Serrated - C
HSP50-C4-3
3.00 mm
5.00 N
-3
Serrated - C
HSP50-C4-2
3.00 mm
3.00 N
-2
Serrated - C
HSP50-C2-4
4.00 mm
10.00 N
-4
Serrated - C
HSP50-C2-3
4.00 mm
5.00 N
-3
Serrated - C
HSP50-C2-2
4.00 mm
3.00 N
-2
Serrated - C
HSP50-A6-4
3.00 mm
10.00 N
-4
Slotted Concave - A6
HSP50-A6-3
3.00 mm
5.00 N
-3
Slotted Concave - A6
HSP50-A6-2
3.00 mm
3.00 N
-2
Slotted Concave - A6
HSP50-A-4
4.00 mm
10.00 N
-4
Concave - A
HSP50-A-3
4.00 mm
5.00 N
-3
Concave - A
HSP50-A-2
4.00 mm
3.00 N
-2
Concave - A
HSP50-K-4
3.00 mm
10.00 N
-4
Star - K
