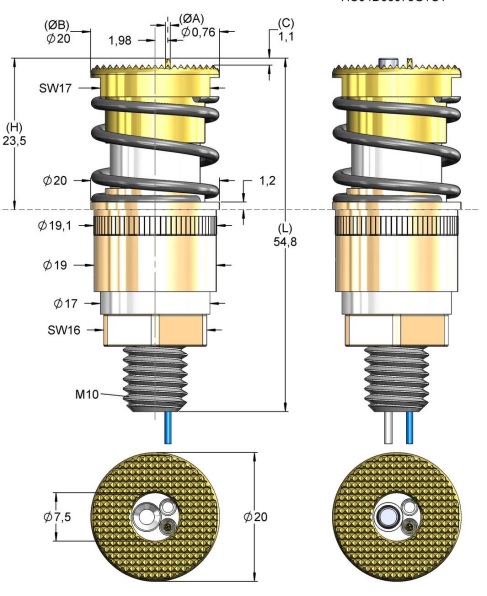

HSP804 High Current Probe Series (300 amp)

High current test probe up to 300 A with co-axial design.

The probe can be loaded with sense pins and temperature sensors. Please see part number descriptions.

Request for quote

Product specification
Mil
984
Centres
25.00 mm
Full Travel
7.00 mm
Working Travel
5.60 mm
Current Resistance
300.00 amps
Continuity Resistance
1.00 mOhms
Application
High Current
Kelvin/Coaxial
Solutions
Battery & High Current Testing

Request for quote

Please choose your Head Diameter and/or Head style to select Probes. The suitable part numbers are then shown below our head style images.
Head Style:
Part NumberDescriptionHead DiameterPreload Spring ForceWorking Travel Spring ForceHead StyleQuantity
HSP804-C-S2
With PT1000 temperature sensor
20.00 mm
10.00 N
70.00 N
Serrated - C
HSP804-C-S3
With NTC temperature sensor
20.00 mm
10.00 N
70.00 N
Serrated - C
HSP804-C-S4
With Typ K temperature sensor
20.00 mm
10.00 N
70.00 N
Serrated - C
HSP804-C-SS1
With sense pin and PT100 temperature sensor
20.00 mm
10.00 N
70.00 N
Serrated - C
HSP804-C-SS2
With sense pin and PT1000 temperature sensor
20.00 mm
10.00 N
70.00 N
Serrated - C
HSP804-C-S1
With PT100 temperature sensor
20.00 mm
10.00 N
70.00 N
Serrated - C
HSP804-C-SC
With sense pin and cooling
20.00 mm
10.00 N
70.00 N
Serrated - C
HSP804-C-S
With sense pin
20.00 mm
10.00 N
70.00 N
Serrated - C
HSP804-C
20.00 mm
10.00 N
70.00 N
Serrated - C
HSP804-C-SS3
With sense pin and NTC temperature sensor
20.00 mm
10.00 N
70.00 N
Serrated - C
HSP804-C-SS4
With sense pin and Typ K temperature sensor
20.00 mm
10.00 N
70.00 N
Serrated - C
HSP804-C-SS
With two sense pins
20.00 mm
10.00 N
70.00 N
Serrated - C
