Probe

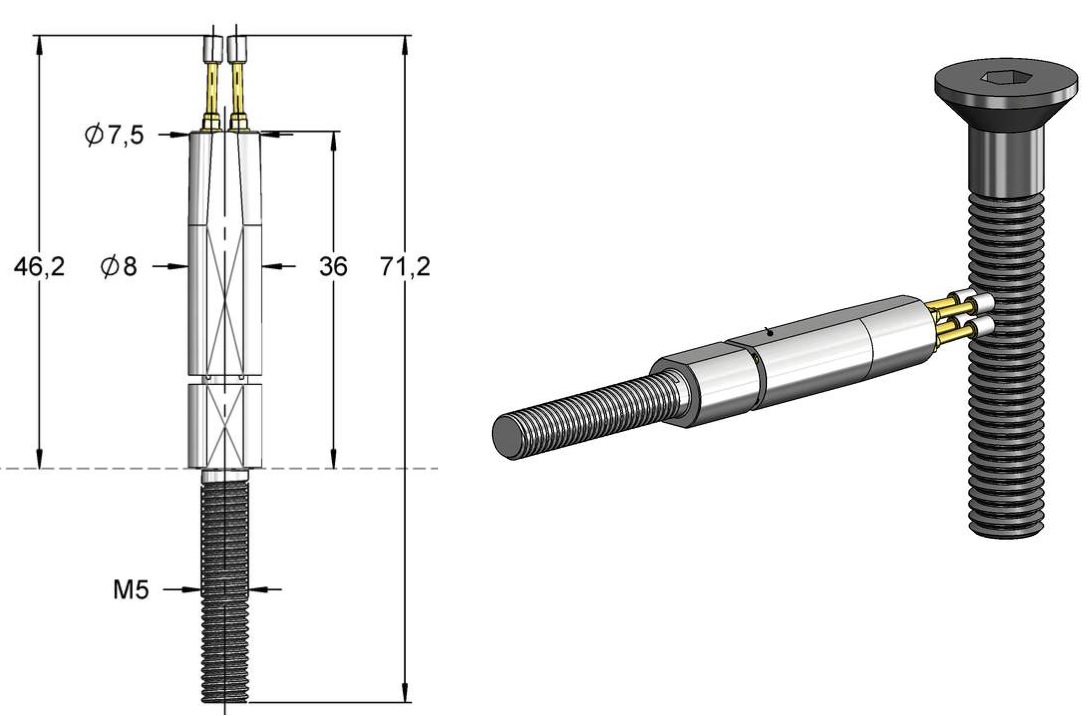

HSP870/G High Current Probe Block
Screw-in high current probe block designed for contacting screws and handles up to 70 amps.
The HSP870 combines the scratch principle with round silver head styles. This unique design allows contacting of screw threads.
Product specification
| Mil | 394 |
| Centres | 10.00 mm |
| Current Resistance | 70.00 amps |
| Continuity Resistance | 3.00 mOhms |
| Application | High Current Screw In Test Heads |
| Solutions | Battery & High Current Testing Wire Harness Testing |
Request for quote
Please choose your Head Diameter and/or Head style to select Probes. The suitable part numbers are then shown below our head style images.
