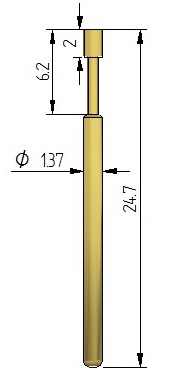

P18 Probe Series

Standard automotive ATE push fit series of probes for heavy duty applications.

A varied choice of head styles and spring pressures are available.

Please choose your Head Diameter and/or Head style to select Probes. The suitable part numbers are then shown below our head style images.

Part Number	Head Diameter	Working Travel Spring Force	Spring Part	Head Style
P18-B-1	0.76 mm	1.50 N	-1	Spear - B
P18-Q1-1	1.90 mm	1.50 N	-1	4 Point Crown - Q
P18-L-1	0.76 mm	1.50 N	-1	Headless 4 Point Crown - L
P18-K-1	1.90 mm	1.50 N	-1	Star - K
P18-H-0	1.90 mm	1.00 N	-0	Chisel - H
P18-E-1	1.90 mm	1.50 N	-1	Cone - E
P18-C1-2	1.90 mm	2.00 N	-2	Serrated - C
P18-C1-1	1.90 mm	1.50 N	-1	Serrated - C
P18-B-2	0.76 mm	2.00 N	-2	Spear - B
P18-A2-2	1.90 mm	2.00 N	-2	Concave - A
P18-A2-1	1.90 mm	1.50 N	-1	Concave - A
P18-A2-0	1.90 mm	1.00 N	-0	Concave - A
