P201/GF Probe Series

Screw in (threaded) switch probe. Bottom thread with easy replacement system. Normally closed.

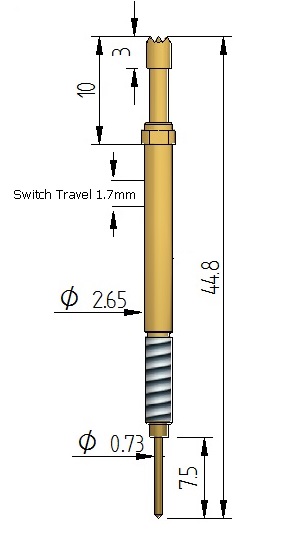

Standard switch travel is 1.7mm but a switch travel of 4.0mm is available upon request.

For a longer projection height, please see P201/GF long version series.

Request for quote

Product specification
Mil
138
Centres
3.50 mm
Full Travel
5.00 mm
Working Travel
4.00 mm
Current Resistance
10.00 amps
Continuity Resistance
50.00 mOhms
Product Series
P201/GF
Application
Screw In
Switch Probe
Solutions
Wire Harness Testing

Request for quote

Please choose your Head Diameter and/or Head style to select Probes. The suitable part numbers are then shown below our head style images.
Head Style:
Part NumberHead DiameterWorking Travel Spring ForceHead StyleQuantity
P201/GF-F-POM
2.30 mm
2.30 N
Flat Insulated - F-POM
P201/GF-C
2.30 mm
2.30 N
Serrated - C
P201/GF-F
2.30 mm
2.30 N
Flat - F
P201/GF-A
2.30 mm
2.30 N
Concave - A
P201/GF-F0
1.80 mm
2.30 N
Headless Flat - F
