P220/G Probe Series

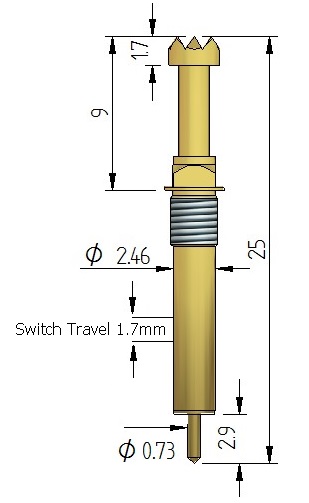

Compact, screw in (threaded) Switch Probe. Normally open. Switch travel is 1.7mm.

A short and robust switch probe which is half the standard length of most common switch probes.

Please choose your Head Diameter and/or Head style to select Probes. The suitable part numbers are then shown below our head style images.

Part Number	Head Diameter	Working Travel Spring Force	Spring Part	Head Style
P220/G-F2-POM-1	3.00 mm	1.50 N	-1	Flat Insulated - F-POM
P220/G-F1-POM-1	2.00 mm	1.50 N	-1	Flat Insulated - F-POM
P220/G-F2-2	3.00 mm	3.00 N	-2	Flat - F
P220/G-F2-1	3.00 mm	1.50 N	-1	Flat - F
P220/G-F1-1	2.00 mm	2.00 N	-1	Flat - F
P220/G-F-2	1.00 mm	3.00 N	-2	Headless Flat - F
P220/G-F-1	1.00 mm	1.50 N	-1	Headless Flat - F
P220/G-C2-2	3.00 mm	3.00 N	-2	Serrated - C
P220/G-C2-2X	3.00 mm	2.00 N	-2X	Serrated - C
P220/G-C2-1	3.00 mm	1.50 N	-1	Serrated - C
P220/G-C1-2X	1.00 mm	2.00 N	-2X	Serrated - C
P220/G-C1-1	1.00 mm	1.50 N	-1	Serrated - C
P220/G-C-2	2.00 mm	3.00 N	-2	Serrated - C
P220/G-C-2X	2.00 mm	2.00 N	-2X	Serrated - C
P220/G-C-1	2.00 mm	1.50 N	-1	Serrated - C
P220/G-A-1	3.00 mm	1.50 N	-1	Concave - A
