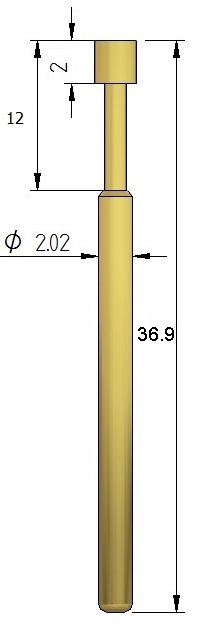

P30L Probe Series (long version)

Standard automotive ATE push fit test probes suitable for heavy duty applications, with a longer travel than standard P30 series.

A wide choice of head styles and spring pressures are available.

For a high current version, please see HSP30 series.

For a standard working travel of 6.35mm please see P30 series.

Request for quote
P30L

Product specification
Mil
125
Centres
3.18 mm
Full Travel
10.00 mm
Current Resistance
5.00 amps
Continuity Resistance
30.00 mOhms
Product Series
P30L
Application
ICT/FCT
Solutions
PCB & ATE Testing

Request for quote

Please choose your Head Diameter and/or Head style to select Probes. The suitable part numbers are then shown below our head style images.
Head Style:
Part NumberHead DiameterWorking Travel Spring ForceSpring PartHead StyleQuantity
P30-AL-1
2.54 mm
1.20 N
-1
Concave - A
P30-AL-2
2.54 mm
3.00 N
-2
Concave - A
P30-LL-2
1.30 mm
3.00 N
-2
Headless 4 Point Crown - L
P30-CL-1
2.54 mm
1.20 N
-1
Serrated - C
P30-CL-2
2.54 mm
3.00 N
-2
Serrated - C
P30-BL-1
1.30 mm
1.20 N
-1
Spear - B
P30-BL-2
1.30 mm
3.00 N
-2
Spear - B
P30-CL2-1
1.30 mm
1.20 N
-1
Headless Serrated - C
P30-CL2-2
1.30 mm
3.00 N
-2
Headless Serrated - C
P30-DL-1
2.54 mm
1.20 N
-1
Dome - D
P30-DL-2
2.54 mm
3.00 N
-2
Dome - D
P30-FL-1
2.54 mm
1.30 N
-1
Flat - F
P30-FL-2
2.54 mm
3.00 N
-2
Flat - F
P30-QL-1
2.54 mm
1.20 N
-1
4 Point Crown - Q
P30-QL-2
2.54 mm
3.00 N
-2
4 Point Crown - Q
P30-LL-1
1.30 mm
1.20 N
-1
Headless 4 Point Crown - L
