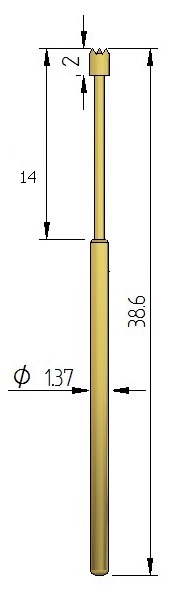

P36 Probe Series

Dual height fixture ATE push fit test probes with a long travel.

Various head styles and spring pressures are available.

Request for quote
Peak Test | Test Probe | P36

Product specification
Mil
100
Centres
2.54 mm
Full Travel
11.70 mm
Working Travel
9.30 mm
Current Resistance
3.00 amps
Continuity Resistance
25.00 mOhms
Application
ICT/FCT
Solutions
PCB & ATE Testing

Request for quote

Please choose your Head Diameter and/or Head style to select Probes. The suitable part numbers are then shown below our head style images.
Head Style:
Part NumberHead DiameterWorking Travel Spring ForceSpring PartHead StyleQuantity
P36-A1-0
1.30 mm
1.50 N
-0
Concave - A
P36-A1-1
1.30 mm
2.00 N
-1
Concave - A
P36-A1-2
1.30 mm
3.00 N
-2
Concave - A
P36-B2-0
0.90 mm
1.50 N
-0
Spear - B
P36-B2-1
0.90 mm
2.00 N
-1
Spear - B
P36-B2-2
0.90 mm
3.00 N
-2
Spear - B
P36-BT81-0
0.90 mm
1.50 N
-0
Dagger - BT80
P36-BT81-1
0.90 mm
2.00 N
-1
Dagger - BT80
P36-BT81-2
0.90 mm
3.00 N
-2
Dagger - BT80
P36-C-0
1.50 mm
1.50 N
-0
Serrated - C
P36-C-1
1.50 mm
2.00 N
-1
Serrated - C
P36-C-2
1.50 mm
3.00 N
-2
Serrated - C
P36-D2-0
0.90 mm
1.50 N
-0
Headless Dome - D
P36-D2-1
0.90 mm
2.00 N
-1
Headless Dome - D
P36-D2-2
0.90 mm
3.00 N
-2
Headless Dome - D
P36-H-0
1.50 mm
1.50 N
-0
Chisel - H
P36-H-1
1.50 mm
2.00 N
-1
Chisel - H
P36-H-2
1.50 mm
3.00 N
-2
Chisel - H
P36-L2-0
0.50 mm
1.50 N
-0
Headless 4 Point Crown - L
P36-L2-1
0.50 mm
2.00 N
-1
Headless 4 Point Crown - L
P36-L2-2
0.50 mm
3.00 N
-2
Headless 4 Point Crown - L
P36-M1-0
1.30 mm
1.50 N
-0
Tulip - M1
P36-M1-1
1.30 mm
2.00 N
-1
Tulip - M1
P36-M1-2
1.30 mm
3.00 N
-2
Tulip - M1
P36-Q-0
1.50 mm
1.50 N
-0
4 Point Crown - Q
P36-Q-1
1.50 mm
2.00 N
-1
4 Point Crown - Q
P36-Q-2
1.50 mm
3.00 N
-2
4 Point Crown - Q
P36-F-1
0.90 mm
2.00 N
-1
Headless Flat - F
