P54 Probe Series

Standard ATE push fit test probe which is suitable for heavy duty applications.

A varied choice of head styles and spring pressures are available.

For a high current version, please see HSP54 series.

Request for quote

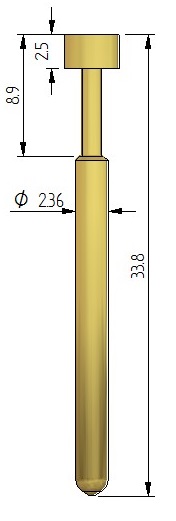

Product specification
Mil
138
Centres
3.50 mm
Full Travel
6.40 mm
Working Travel
5.10 mm
Current Resistance
5.00 amps
Continuity Resistance
20.00 mOhms
Product Series
P54
Application
ICT/FCT
Solutions
PCB & ATE Testing

Request for quote

Please choose your Head Diameter and/or Head style to select Probes. The suitable part numbers are then shown below our head style images.
Head Style:
Part NumberHead DiameterWorking Travel Spring ForceSpring PartHead StyleQuantity
P54-H-1
2.54 mm
2.00 N
-1
Chisel - H
P54-H-2
2.54 mm
3.00 N
-2
Chisel - H
P54-H4-1
5.50 mm
1.50 N
-1
Chisel - H
P54-F1-3
1.45 mm
3.00 N
-3
Headless Flat - F
P54-F1-2
1.45 mm
2.50 N
-2
Headless Flat - F
P54-F1-1
1.45 mm
1.50 N
-1
Headless Flat - F
P54-F1-0
1.45 mm
1.00 N
-0
Headless Flat - F
P54-Q-1
3.96 mm
2.00 N
-1
4 Point Crown - Q
P54-L-3
1.45 mm
3.00 N
-3
Headless 4 Point Crown - L
P54-L-0
1.45 mm
1.00 N
-0
Headless 4 Point Crown - L
P54-K-1
1.50 mm
1.50 N
-1
Star - K
P54-HL4-1
5.50 mm
1.50 N
-1
Chisel - H
P54-L-1
1.45 mm
1.50 N
-1
Headless 4 Point Crown - L
P54-L-2
1.45 mm
2.50 N
-2
Headless 4 Point Crown - L
P54-A-0
3.96 mm
1.00 N
-0
Concave - A
P54-A-1
3.96 mm
1.50 N
-1
Concave - A
P54-A-2
3.96 mm
2.50 N
-2
Concave - A
P54-A-3
3.96 mm
3.00 N
-3
Concave - A
P54-B-0
1.52 mm
1.00 N
-0
Spear - B
P54-B-1
1.52 mm
1.50 N
-1
Spear - B
P54-B-2
1.52 mm
2.50 N
-2
Spear - B
P54-B-3
1.52 mm
3.00 N
-3
Spear - B
P54-C-0
3.96 mm
1.00 N
-0
Serrated - C
P54-C-1
3.96 mm
1.50 N
-1
Serrated - C
P54-C-2
3.96 mm
2.50 N
-2
Serrated - C
P54-C-3
3.96 mm
3.00 N
-3
Serrated - C
P54-D-0
2.36 mm
1.00 N
-0
Dome - D
P54-D-1
2.36 mm
1.50 N
-1
Dome - D
P54-D-2
2.36 mm
2.50 N
-2
Dome - D
P54-D-3
2.36 mm
3.00 N
-3
Dome - D
P54-D1-0
1.45 mm
1.00 N
-0
Headless Dome - D
P54-D1-1
1.45 mm
1.50 N
-1
Headless Dome - D
P54-D1-2
1.45 mm
2.50 N
-2
Headless Dome - D
P54-D1-3
1.45 mm
3.00 N
-3
Headless Dome - D
P54-D2-1
3.96 mm
1.50 N
-1
Dome - D
P54-D2-2
3.96 mm
2.50 N
-2
Dome - D
P54-E-0
3.96 mm
1.00 N
-0
Cone - E
P54-E-1
3.96 mm
1.50 N
-1
Cone - E
P54-E-2
3.96 mm
2.50 N
-2
Cone - E
P54-E-3
3.96 mm
3.00 N
-3
Cone - E
P54-E1-0
2.36 mm
1.00 N
-0
Cone - E
P54-E1-1
2.36 mm
1.50 N
-1
Cone - E
P54-E1-2
2.36 mm
2.50 N
-2
Cone - E
P54-E1-3
2.36 mm
3.00 N
-3
Cone - E
P54-E2-1
2.01 mm
1.50 N
-1
Cone - E
P54-E2-2
2.01 mm
2.50 N
-2
Cone - E
P54-F-1
3.96 mm
1.50 N
-1
Flat - F
