Probe

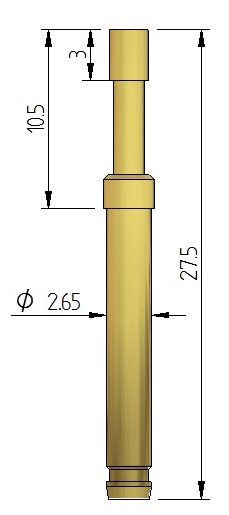

P60 Probe Series

Standard ATE push fit test probe which is suitable for heavy duty applications.

A varied choice of head styles and spring pressures are available.

For a high current version, please see P60-X series.

Request for quote

Product specification
Mil
160
Centres
4.00 mm
Full Travel
5.50 mm
Working Travel
4.40 mm
Current Resistance
5.00 amps
Continuity Resistance
30.00 mOhms
Product Series
P60
Application
ICT/FCT
Solutions
PCB & ATE Testing

Request for quote

Please choose your Head Diameter and/or Head style to select Probes. The suitable part numbers are then shown below our head style images.
Head Style:
Part NumberHead DiameterWorking Travel Spring ForceSpring PartHead StyleQuantity
P60-KF1-0
4.00 mm
0.60 N
-0
Flat Star - KF
P60-KF1-2
4.00 mm
3.00 N
-2
Flat Star - KF
P60-KF1-3
4.00 mm
5.00 N
-3
Flat Star - KF
P60-F4-3
3.00 mm
5.00 N
-3
Flat - F
P60-KF-3
2.60 mm
5.00 N
-3
Flat Star - KF
P60-KF-2
2.60 mm
3.00 N
-2
Flat Star - KF
P60-K1-1
2.30 mm
1.50 N
-1
Star - K
P60-K-3
1.80 mm
5.00 N
-3
Star - K
P60-K1-2
2.30 mm
3.00 N
-2
Star - K
P60-K2-1
3.00 mm
1.50 N
-1
Star - K
P60-KF-1
2.60 mm
1.50 N
-1
Flat Star - KF
P60-KF-0
2.60 mm
0.60 N
-0
Flat Star - KF
P60-K2-2
3.00 mm
3.00 N
-2
Star - K
P60-H-2
2.50 mm
3.00 N
-2
Chisel - H
P60-H-1
2.50 mm
1.50 N
-1
Chisel - H
P60-F4-1
3.00 mm
1.50 N
-1
Flat - F
P60-F3-3
2.30 mm
5.00 N
-3
Flat - F
P60-F4-2
3.00 mm
3.00 N
-2
Flat - F
P60-F4-3X
3.00 mm
5.00 N
-3
Flat
P60-F5-2
2.50 mm
3.00 N
-2
Flat - F
P60-F5-1
2.50 mm
1.50 N
-1
Flat - F
P60-F5-0
2.50 mm
0.60 N
-0
Flat - F
P60-F3-2
2.30 mm
3.00 N
-2
Flat - F
P60-F3-1
2.30 mm
1.50 N
-1
Flat - F
P60-F1-3
1.00 mm
5.00 N
-3
Reduced Flat - F
P60-F1-2
1.00 mm
3.00 N
-2
Reduced Flat - F
P60-F2-0
1.80 mm
0.60 N
-0
Headless Flat - F
P60-F2-1
1.80 mm
1.50 N
-1
Headless Flat - F
P60-F3-0
2.30 mm
0.60 N
-0
Flat - F
P60-F2-3
1.80 mm
5.00 N
-3
Headless Flat - F
P60-F2-2
1.80 mm
3.00 N
-2
Headless Flat - F
P60-F5-3
2.50 mm
5.00 N
-3
Flat - F
P60-F6-0
4.00 mm
0.60 N
-0
Flat - F
P60-Q1-3
2.50 mm
5.00 N
-3
4 Point Crown - Q
P60-Q1-2
2.50 mm
3.00 N
-2
4 Point Crown - Q
P60-Q2-0
4.00 mm
0.60 N
-0
4 Point Crown - Q
P60-Q2-1
4.00 mm
1.50 N
-1
4 Point Crown - Q
P60-H-0
2.50 mm
0.60 N
-0
Chisel - H
P60-Q2-3
4.00 mm
5.00 N
-3
4 Point Crown - Q
P60-Q2-2
4.00 mm
3.00 N
-2
4 Point Crown - Q
P60-Q1-1
2.50 mm
1.50 N
-1
4 Point Crown - Q
P60-Q1-0
2.50 mm
0.60 N
-0
4 Point Crown - Q
P60-F6-2
4.00 mm
3.00 N
-2
Flat - F
P60-F6-1
4.00 mm
1.50 N
-1
Flat - F
P60-F6-3
4.00 mm
5.00 N
-3
Flat - F
P60-Q-0
2.30 mm
0.60 N
-0
4 Point Crown - Q
P60-Q-3
2.30 mm
5.00 N
-3
4 Point Crown - Q
P60-Q-2
2.30 mm
3.00 N
-2
4 Point Crown - Q
P60-Q-1
2.30 mm
1.50 N
-1
4 Point Crown - Q
P60-K-0
1.80 mm
0.60 N
-0
Star - K
P60-H5-2
2.30 mm
3.00 N
-2
Chisel - H
P60-H5-1
2.30 mm
1.50 N
-1
Chisel - H
P60-H3-0
2.60 mm
0.60 N
-0
Chisel - H
P60-H3-3
2.60 mm
5.00 N
-3
Chisel - H
P60-F1-1
1.00 mm
1.50 N
-1
Reduced Flat - F
P60-H3-1
2.60 mm
1.50 N
-1
Chisel - H
P60-H2-3
4.20 mm
5.00 N
-3
Chisel - H
P60-H3-2
2.60 mm
3.00 N
-2
Chisel - H
P60-H1-1
3.00 mm
1.50 N
-1
Chisel - H
P60-H2-2
4.20 mm
3.00 N
-2
Chisel - H
P60-K-1
1.80 mm
1.50 N
-1
Star - K
P60-K-2
1.80 mm
3.00 N
-2
Star - K
P60-KF1-1
4.00 mm
1.50 N
-1
Flat Star - KF
P60-H1-3
3.00 mm
5.00 N
-3
Chisel - H
P60-H2-0
4.20 mm
0.60 N
-0
Chisel - H
P60-H1-0
3.00 mm
0.60 N
-0
Chisel - H
P60-H-3
2.50 mm
5.00 N
-3
Chisel - H
P60-H1-2
3.00 mm
3.00 N
-2
Chisel - H
P60-H2-1
4.20 mm
1.50 N
-1
Chisel - H
P60-F1-0
1.00 mm
0.60 N
-0
Reduced Flat - F
P60-D3-2
1.40 mm
3.00 N
-2
Reduced Dome - D
P60-C2-1
4.00 mm
1.50 N
-1
Serrated - C
P60-C2-0
4.00 mm
0.60 N
-0
Serrated - C
P60-C2-2
4.00 mm
3.00 N
-2
Serrated - C
P60-C2-3
4.00 mm
5.00 N
-3
Serrated - C
P60-C4-2
3.00 mm
3.00 N
-2
Serrated - C
P60-C4-1
3.00 mm
1.50 N
-1
Serrated - C
P60-C4-0
3.00 mm
0.60 N
-0
Serrated - C
P60-C1-3
2.50 mm
5.00 N
-3
Serrated - C
P60-C1-2
2.50 mm
3.00 N
-2
Serrated - C
P60-C-0
2.30 mm
0.60 N
-0
Serrated - C
P60-BA-3
1.80 mm
5.00 N
-3
Flat nose spear - BA
P60-C-1
2.30 mm
1.50 N
-1
Serrated - C
P60-C-2
2.30 mm
3.00 N
-2
Serrated - C
P60-C1-1
2.50 mm
1.50 N
-1
Serrated - C
P60-C1-0
2.50 mm
0.60 N
-0
Serrated - C
P60-C-3
2.30 mm
5.00 N
-3
Serrated - C
P60-C4-3
3.00 mm
5.00 N
-3
Serrated - C
P60-C6-0
3.50 mm
0.60 N
-0
Serrated - C
P60-D5-1
1.00 mm
1.50 N
-1
Reduced Dome - D
P60-D1-1
2.30 mm
1.50 N
-1
Dome - D
P60-D6-2
1.80 mm
3.00 N
-2
Headless Dome - D
P60-BA-1
1.80 mm
1.50 N
-1
Flat nose spear - BA
P60-BA-2
1.80 mm
3.00 N
-2
Flat nose spear - BA
P60-C8-1
8.00 mm
1.50 N
-1
Serrated - C
P60-C8-2
8.00 mm
3.00 N
-2
Serrated - C
P60-C8-3
8.00 mm
5.00 N
-3
Serrated - C
P60-C8-0
8.00 mm
0.60 N
-0
Serrated - C
P60-C6-3
3.50 mm
5.00 N
-3
Serrated - C
P60-C6-1
3.50 mm
1.50 N
-1
Serrated - C
P60-C6-2
3.50 mm
3.00 N
-2
Serrated - C
P60-D0-0
0.80 mm
0.60 N
-0
Reduced Dome - D
P60-D0-1
0.80 mm
1.50 N
-1
Reduced Dome - D
P60-D-2
2.50 mm
3.00 N
-2
Dome - D
P60-D-3
2.50 mm
5.00 N
-3
Dome - D
P60-D2-0
3.00 mm
0.60 N
-0
Dome - D
P60-D-1
2.50 mm
1.50 N
-1
Dome - D
P60-D-0
2.50 mm
0.60 N
-0
Dome - D
P60-D0-2
0.80 mm
3.00 N
-2
Reduced Dome - D
P60-D0-3
0.80 mm
5.00 N
-3
Reduced Dome - D
P60-F-1
1.40 mm
1.50 N
-1
Headless Flat - F
P60-D6-3
1.80 mm
5.00 N
-3
Headless Dome - D
P60-D6-1
1.80 mm
1.50 N
-1
Headless Dome - D
P60-F-2
1.40 mm
3.00 N
-2
Headless Flat - F
P60-D5-0
1.00 mm
0.60 N
-0
Dome - D
P60-D2-3
3.00 mm
5.00 N
-3
Dome - D
P60-D1-2
2.30 mm
3.00 N
-2
Dome - D
P60-D3-3
1.40 mm
5.00 N
-3
Reduced Dome - D
P60-D1-3X
2.30 mm
4.00 N
-3X
Dome - D
P60-D3-1
1.40 mm
1.50 N
-1
Reduced Dome - D
P60-A-3
2.50 mm
5.00 N
-3
Concave - A
P60-A4-0
4.00 mm
0.60 N
-0
Concave - A
P60-A4-1
4.00 mm
1.50 N
-1
Concave - A
P60-A-2
2.50 mm
3.00 N
-2
Concave - A
P60-A-1
2.50 mm
1.50 N
-1
Concave - A
P60-D6-0
1.80 mm
0.60 N
-0
Headless Dome - D
P60-A-0
2.50 mm
0.60 N
-0
Concave - A
P60-A4-2
4.00 mm
3.00 N
-2
Concave - A
P60-A4-3
4.00 mm
5.00 N
-3
Concave - A
P60-B-2
1.80 mm
3.00 N
-2
Spear - B
P60-B-3
1.80 mm
5.00 N
-3
Spear - B
P60-BA-0
1.80 mm
0.60 N
-0
Flat nose spear - BA
P60-B-1
1.80 mm
1.50 N
-1
Spear - B
P60-B-0
1.80 mm
0.60 N
-0
Spear - B
P60-A1-2
2.30 mm
3.00 N
-2
Concave - A
P60-A1-3X
2.30 mm
4.00 N
-3X
Concave - A
P60-D5-3
1.00 mm
5.00 N
-3
Reduced Dome - D
P60-D5-2
1.00 mm
3.00 N
-2
Reduced Dome - D
P60-D3-0
1.40 mm
0.60 N
-0
Reduced Dome - D
P60-D2-1
3.00 mm
1.50 N
-1
Dome - D
P60-D2-2
3.00 mm
3.00 N
-2
Dome - D
