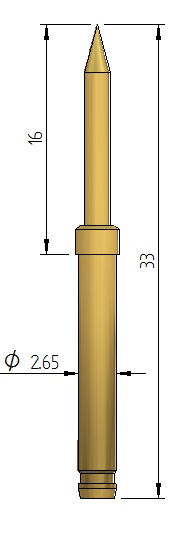

P61 Probe Series
Standard ATE push fit test probe which is suitable for heavy duty applications.
A varied choice of head styles and spring pressures are available.
For a screw in (threaded) option, please see series P61/G.
Product specification
| Mil | 160 |
| Centres | 4.00 mm |
| Full Travel | 7.00 mm |
| Working Travel | 5.60 mm |
| Current Resistance | 5.00 amps |
| Continuity Resistance | 35.00 mOhms |
| Product Series | P61 |
| Application | ICT/FCT |
| Solutions | PCB & ATE Testing |
Request for quote
Please choose your Head Diameter and/or Head style to select Probes. The suitable part numbers are then shown below our head style images.
