Probe

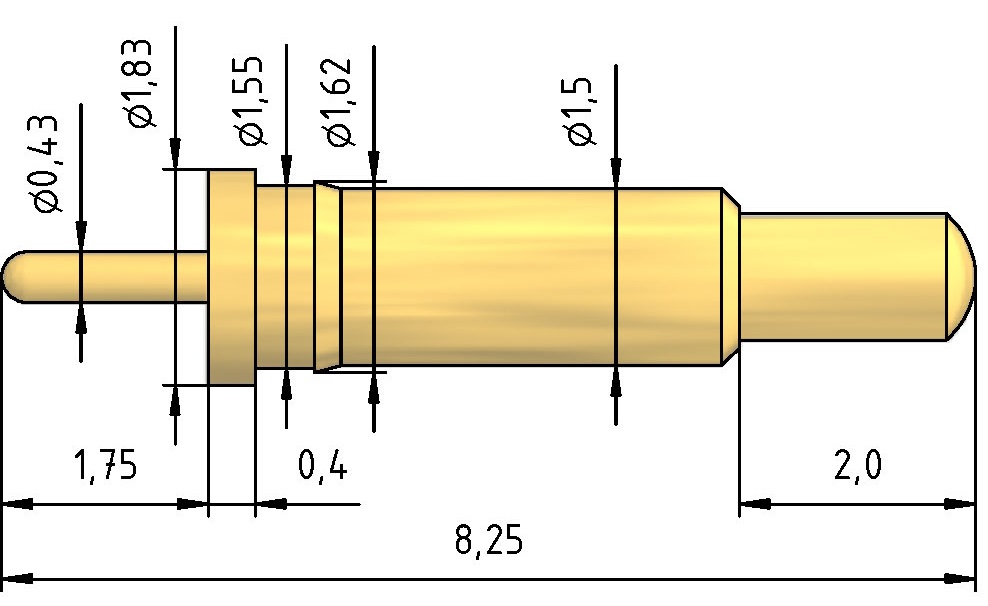

P696/W Probe Series
Compact, push fit battery contact probe.
Suitable for applications with limited space and surface mounting.
Product specification
| Mil | 100 |
| Centres | 2.54 mm |
| Full Travel | 1.40 mm |
| Working Travel | 0.70 mm |
| Current Resistance | 3.50 amps |
| Continuity Resistance | 20.00 mOhms |
| Application | Battery Contact |
| Solutions | PCB & ATE Testing Short Travel Testing |
Request for quote
Please choose your Head Diameter and/or Head style to select Probes. The suitable part numbers are then shown below our head style images.
