P706 Probe Series

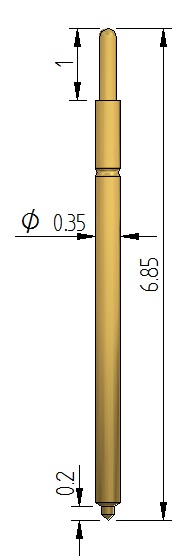

Double plunger, push fit test probe P706 for fine pitch components.
They are designed as double plunger probes with two separate spring loaded plungers - one for contacting DUT and the other for contacting the testers interface board.
Product specification
| Mil | 20 |
| Centres | 0.50 mm |
| Full Travel | 0.75 mm |
| Working Travel | 0.65 mm |
| Current Resistance | 2.00 amps |
| Continuity Resistance | 60.00 mOhms |
| Product Series | P706 |
| Application | Double Ended Fine Pitch ICT/FCT |
| Solutions | Fine Pitch Testing PCB & ATE Testing Short Travel Testing |
Request for quote
Please choose your Head Diameter and/or Head style to select Probes. The suitable part numbers are then shown below our head style images.
