Probe
P835/G Probe Series

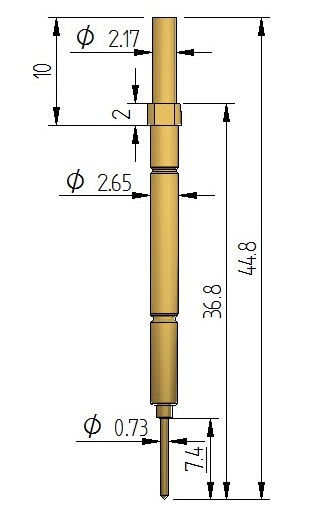

A fine screw in (threaded) Kelvin test Probe suitable for small centers.
This probe has internal and circular contacts.
*The travel shown is for the internal contact.
Product specification
| Mil | 138 |
| Centres | 3.50 mm |
| Full Travel | 5.00 mm |
| Working Travel | 4.00 mm |
| Current Resistance | 2.00 amps |
| Continuity Resistance | 50.00 mOhms |
| Product Series | P835/G |
| Application | Kelvin/Coaxial Screw In |
| Solutions | RF Testing |
Request for quote
Please choose your Head Diameter and/or Head style to select Probes. The suitable part numbers are then shown below our head style images.
