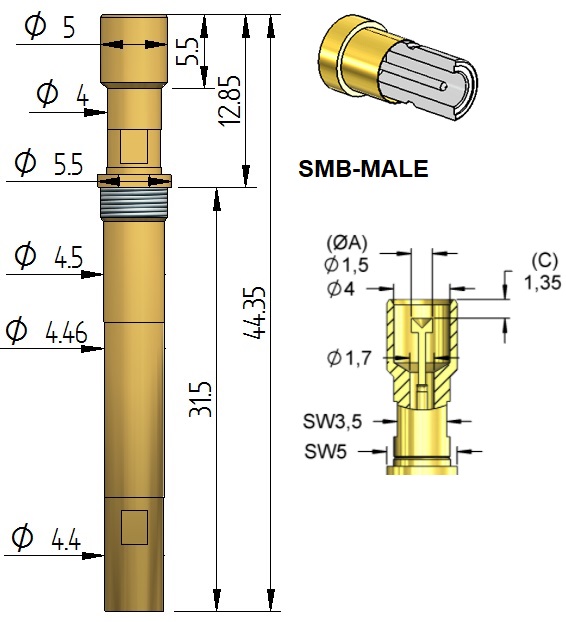

P8602/G Probe Series (SMB Male)

High frequency, screw in (threaded) coaxial test probe with a frequency of up to 6.0 GHz. Used to contact SMB Male connectors.

The probe is made up of a inner and outer conductor.

Compatible receptacle is available. For a push fit option, please see P8602 series

Please choose your Head Diameter and/or Head style to select Probes. The suitable part numbers are then shown below our head style images.

Head Diameter:

Head Style:

Any

Concave - A

Working Travel Spring Force:

Part Number	Head Diameter	Working Travel Spring Force	Spring Part	Head Style
P8602/G-A	1.50 mm	5.30 N		Concave - A
P8602/G-A-1	1.50 mm	6.00 N	-1	Concave - A
P8602/G-A-2	1.50 mm	7.30 N	-2	Concave - A
P8602/G-A-4	1.50 mm	9.30 N	-4	Concave - A
P8602/G-A-3	1.50 mm	8.00 N	-3	Concave - A
P8602/G-A-5	1.50 mm	10.00 N	-5	Concave - A
