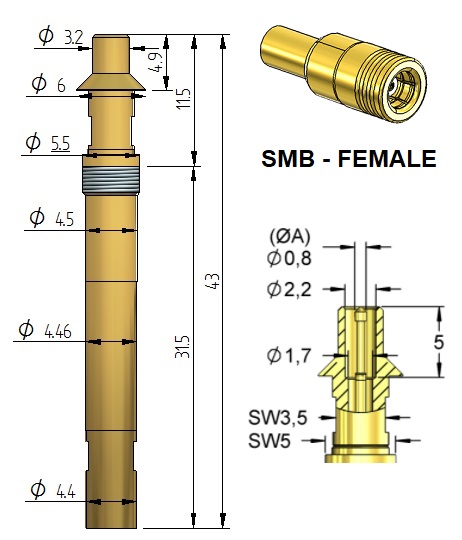

P8603/G Probe Series (SMB Female)

High frequency, screw in (threaded) coaxial test probe with a frequency of up to 6.0 GHz. Used to contact SMB Female connectors.

Suitable for radio frequency applications. The probe is made up of a inner and outer conductor.

Compatible receptacle is available. For a push fit option, please see P8603 series

Mil	256
Centres	6.50 mm
Full Travel	3.00 mm
Working Travel	2.00 mm
Current Resistance	3.00 amps
Continuity Resistance	50.00 mOhms
Product Series	P8603/G
Application	High Frequency Kelvin/Coaxial Screw In
Solutions	RF Testing

Please choose your Head Diameter and/or Head style to select Probes. The suitable part numbers are then shown below our head style images.

Head Diameter:

Head Style:

Any

Cone - E

Working Travel Spring Force:

Part Number	Head Diameter	Working Travel Spring Force	Spring Part	Head Style
P8603/G-E-5	0.80 mm	10.00 N	-5	Cone - E
P8603/G-E-4	0.80 mm	9.30 N	-4	Cone - E
P8603/G-E-3	0.80 mm	8.00 N	-3	Cone - E
P8603/G-E-2	0.80 mm	7.30 N	-2	Cone - E
P8603/G-E-1	0.80 mm	6.00 N	-1	Cone - E
P8603/G-E	0.80 mm	5.30 N		Cone - E
